ASPEE PS/16

ASPEE PS/16

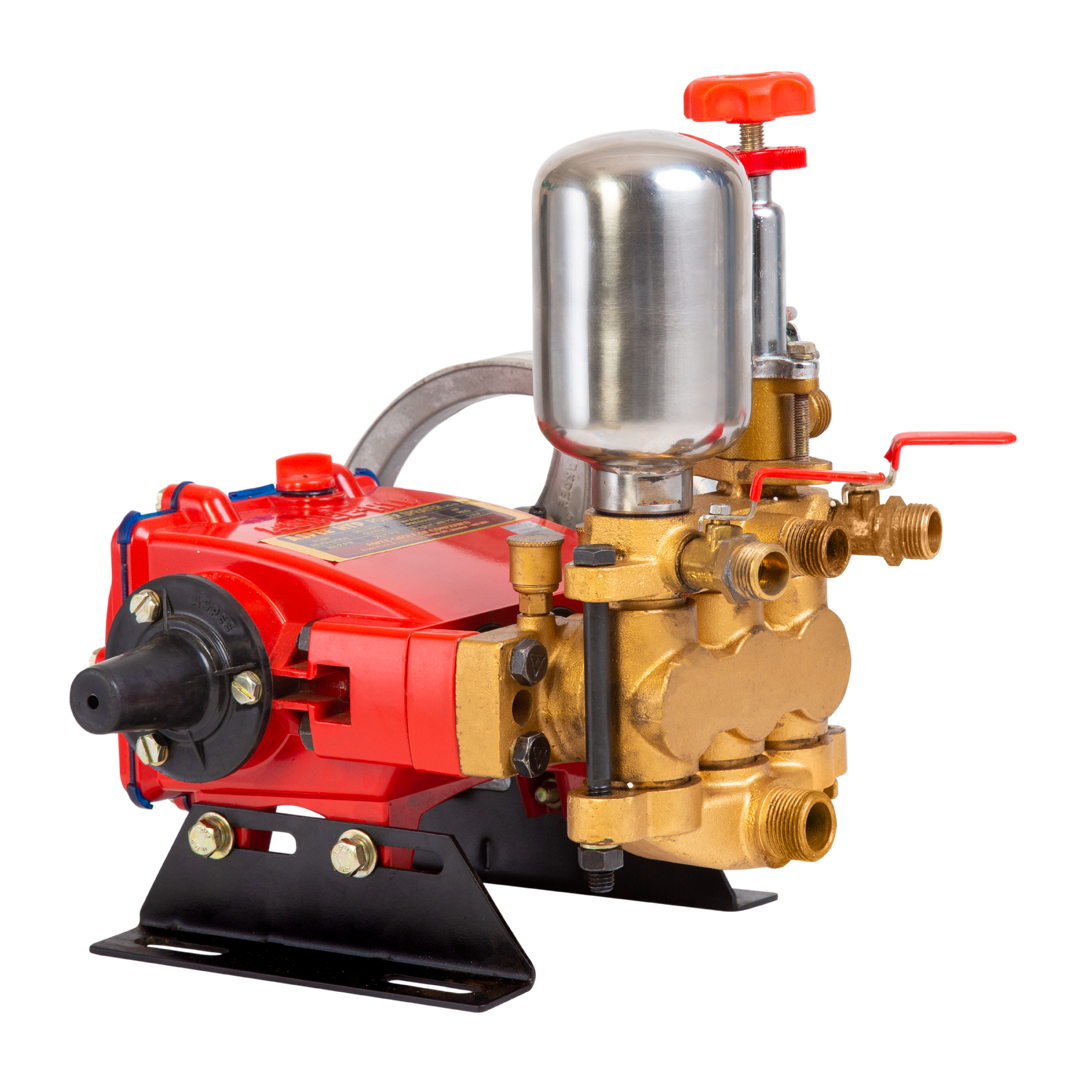

ASPEE – HTP horizontal triplex piston power spraying unit, developing 450 PSI (28 BAR)
 pressure and giving free discharge off 36 lpm at 950 rpm. Supplied with pulley, pressure vessel,
 pressure gauge, by pass cum pressure regular valve (CVA), 3 meter long bypass hose & suction
 hose with strainer, couplings for delivery hose.

Heavy duty & efficient sprayer
Triplex stainless steel piston and oil bath lubrication
Develops 400 psi pressure
Discharge capacity is 36 lit per minute at 950 rpm
Provided with coupling set
Convenient to spray with 4 spray Gun at a time

Model: PS/16
Suction capacity: 36 ltr / min
Normal working pressure: 100 - 200 PSI (7 – 14 bar)
Max. pressure: 400 PSI (28 bar)
Pump revolution: 950 rpm
Power required: 3 hp
Weight (without oil & pulley): 12 kg (approx.)
L x W x H (in mm): 430 x 430 x 300

Industry-standard piston pumps for agriculture.
Available in various pressure outputs (16-50 bar).
High-grade brass and stainless steel parts.
Designed for mounting on tractors or trolleys.
Constant flow rate for uniform spraying.
Legendary Aspee durability and part availability.
