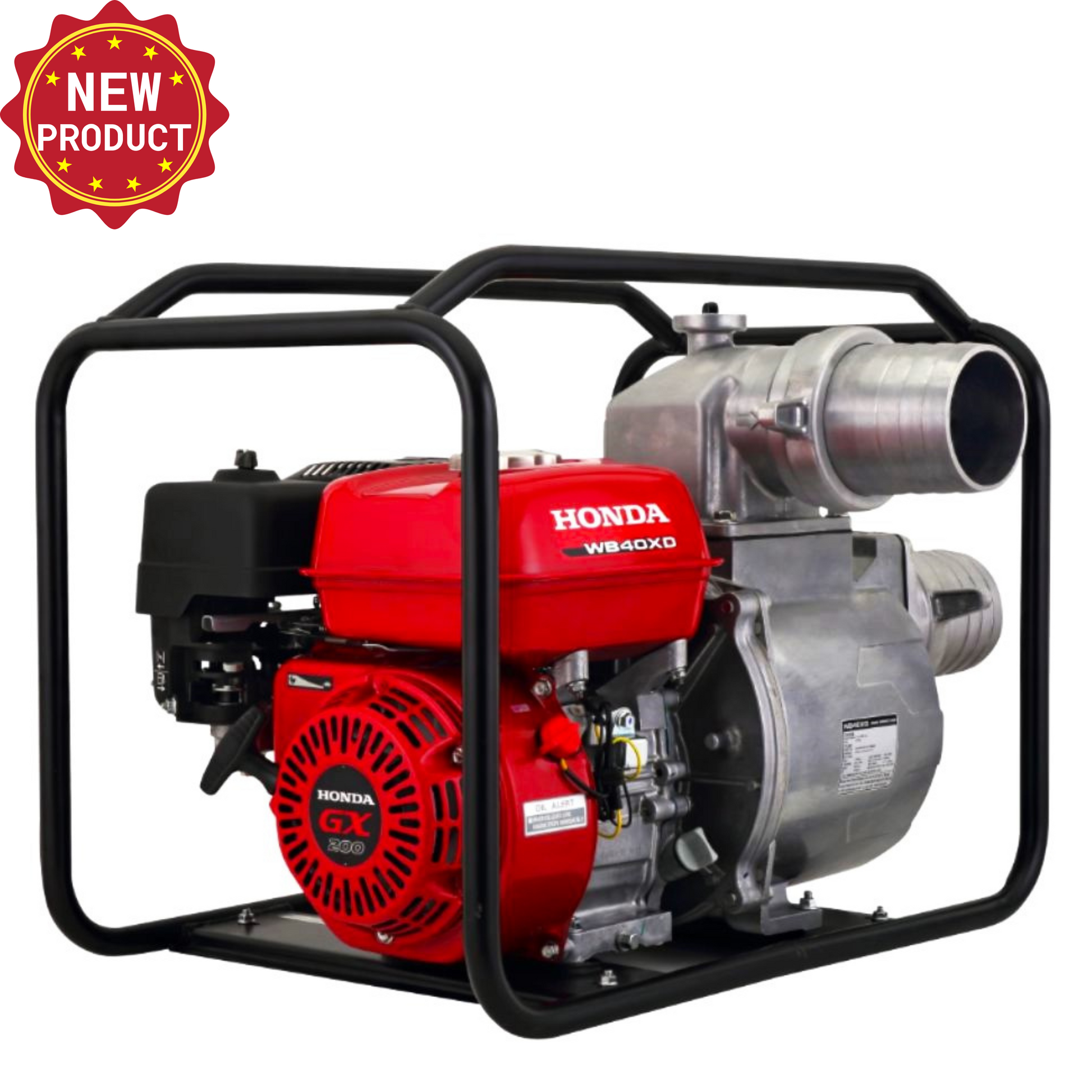

HONDA WB40XD WATER PUMP

HONDA WB40XD WATER PUMP

Pump Specifications
Type : Centrifugal Self Priming, Monoblock Horizontal with Mechanical Seal
Suction Port Diameter (mm): 100
Discharge Port Diameter (mm): 100
Total Head Range (m):  20
Suction Head (m):  4
Maximum Discharge (L/m):  1750
Dimensions (L x W x H) mm : 625 x 425 x 495
Dry Weight (kg):  35
Operating Weight (kg):  38
Engine Model : GX200D
Engine Type:  4-stroke, OHV, single cylinder, Air cooled engine inclined by 25°
Fuel Type :  Unleaded Petrol
Fuel Tank Capacity (L) : 3.1
Maximum Power[kw(hp)/rpm]: 4.1 (5.5) / 3,600
Engine Oil Capacity (L) : 0.6
Recommended Oil Grade :SAE 10W-30 API SF or later
Starting System : Recoil Starter
Powerful Honda engine for rapid water transfer.
Self-priming technology for instant operation.
High discharge capacity (up to 1100L/min).
Robust cast iron impeller and volute case.
Fuel-efficient for long hours of irrigation.
Compact frame for easy transport between fields.
